Description

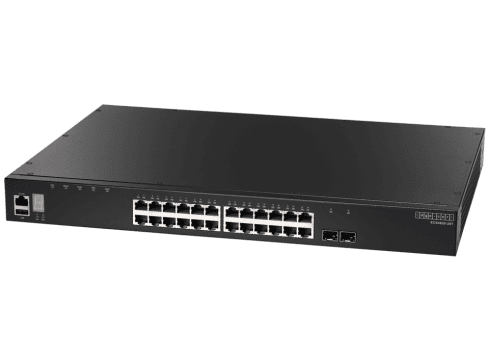

The Edge-Core ECS4620 Series is a family of high-performance Gigabit Ethernet Layer 3 switches. The switches have 28 or 52 ports and support 24 /48 10/100/1000BASE-T ports, 2 10G SFP+ ports, and one 10G dual port expansion slot. The switches are ideal for high-performance server aggregations, such as enterprise data centers, where they can connect high-end or network-attached files servers over fiber ports. The switches can also be deployed as a backbone upgrade, or to provide Gigabitto-the-desktop for power users.
FEATURES
The Edge-Core ECS4620 Series is a family of high-performance Gigabit Ethernet Layer 3 switches featuring 28 or 52 ports; with 24 /48 10/100/1000BASE-T ports, 2 10G SFP+ ports, and one 10G dual port expansion slot. The switches are ideal for high-performance server aggregations, such as enterprise data centers, where they can connect high-end or network-attached files servers over fiber ports. They can also be deployed as a backbone upgrade, or to provide Gigabitto-the-desktop for power users. These switches are packed with features and are a cost-effective solution that bring continuous availability, enhanced security, and advanced QoS to the network edge, while maintaining simplicity of management.
PRODUCT SPECIFICATIONS
Brand
Edge-Core
Item model number
EC-ECS4620-28T
Product Type
Layer 3 Switch
Switching Capacity
128 Gpbs
Forwarding Rate
95.23 Mpps
Flash Memory
128 MB
DRAM
256 MB
MAC Address Table Size
16 K
Rack Space
19"
Dimension (W x D x H) cm
44 x 31.5 x 4.4
Max System Power Consumption (Watts)
35 W
Operating Temperature
0C to 45C
