Description
The product is a 24 port gigabit passive poe injector. It features dual power supplies for increased PoE budget and redundancy. The unit supports input voltage of 12-57V via a 2.1mm DC jack and is rack-mountable. It also has 48x 10/100/1000 ethernet ports. The max current per port is 1000mA. The product has a PoE mode which is Mode B / Mid-span (4/5+; 7/8-) and it has a PoE output which is PoE pass-through (Power output determined by PSU). The power input is 12-57V power supply (not included). The product is supported by voltage range of 12-57V.
Pleasenote that the PSU is not included.
PRODUCT DESCRIPTION

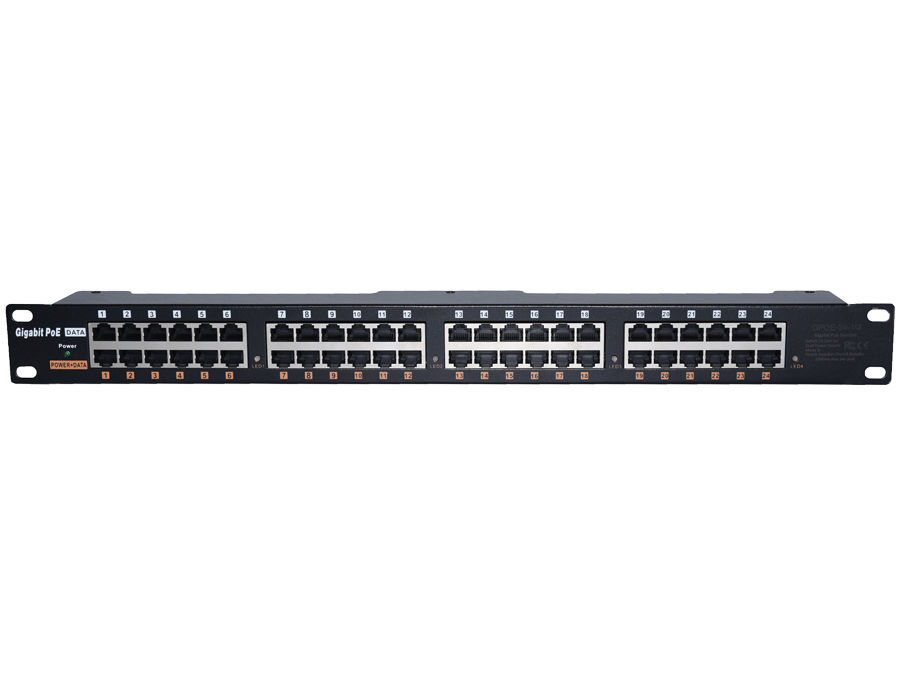

POE-24G is a 24 Port Gigabit Passive PoE Injector featuring dual power supplies for increased PoE budget and redundancy. The unit supports input voltage of 12-57V via a 2.1mm DC jack and is Rack-Mountable.
PRODUCT SPECIFICATIONS
Ethernet Ports: 48x 10/100/1000
Max. Current Per Port: 1000mA
Operating Temperature: 0C to 50C
PoE Mode: Mode B / Mid-span (4/5+; 7/8-)
PoE Output: PoE Pass-through (Power output determined by PSU)
Power Input: 12-57V Power Supply (Not Included)
Supported Voltage Range: 12-57V
