Description

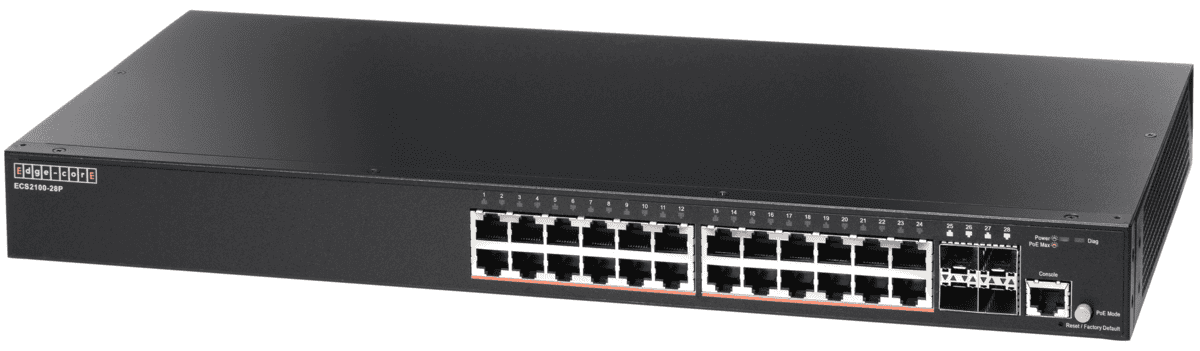

The Edge-core 28 Port Gb Websmart Pro Poe Switch is a PoE switch designed for the SMB market. It has 8, 24, or 48 10/100/1000BASE-T ports, with each switch supporting 2 or 4 Gigabit SFP ports. It also has a default 370 W of PoE power, but can be extended up to 740 W by purchasing a PS3000 (Power Shelf) and EPS460W (Entended Power Supply). The switch supports 8, 24, or 48 10/100/1000BASE-T ports, with each switch supporting 2 or 4 Gigabit SFP ports. The ECS2100-10PE is the most compact (height: 2.65 cm) managed PoE switch design, a cost-effective PoE switch with powerful software and security features. The switch can be mounted in many small spaces, on a wall or in a rack. The ECS2100-10P is a full-PoE fanless design switch, it supports up to 8 ports at 15.4 W, or 4 ports at 30 W to meet the increasing power demands of users.
FEATURES
The ECS2100 Series is a range of web-smart switches designed for the SMB market. The switches can be deployed in different target network topologies, from small to large. Besides powerful software features, the switches provide a complete solution from 1G to 10G, including both non-PoE and PoE options.
The ECS2100 Series offers complete PoE solutions from 65 W to 740 W. The ECS2100-10PE is the most compact (height: 2.65 cm) managed PoE switch design, a cost-effective PoE switch with powerful software and security features. The switch can be mounted in many small spaces, on a wall or in a rack. The ECS2100-10P is a full-PoE fanless design switch, it supports up to 8 ports at 15.4 W, or 4 ports at 30 W to meet the increasing power demands of users. The ECS2100-28PP is an extendable PoE switch, it delivers a default 370 W of PoE power, but can be extended up to 740 W by purchasing a PS3000 (Power Shelf) and EPS460W (Entended Power Supply) to support future IP cameras, IP telephones, or access points.
The ECS2100 Series supports 8, 24, and 48 10/100/1000BASE-T ports, with each switch supporting 2 or 4 Gigabit SFP ports. The ECS2110-26P provides 2 10G uplink SFP ports to increase switch uplink bandwidth and meet the needs of future 802.11ac routers.
PRODUCT SPECIFICATIONS
Brand
Edge-Core
Item model number
EC-ECS2100-28P
Product Type
PoE Switch
RJ-45 10/100/1000 Ports
24
Switching Capacity
56 Gbps
Forwarding Rate
41.7 Mpps
Flash Memory
32 MB
DRAM
256 MB
Packet Buffer
12 Mbits
MAC Address Table
16 K
Heat Dissipation
887.141 (Btu/H)
Max System Power Consumption (Watts)
260 W
Operating Temperature
0C to 50C
