Description

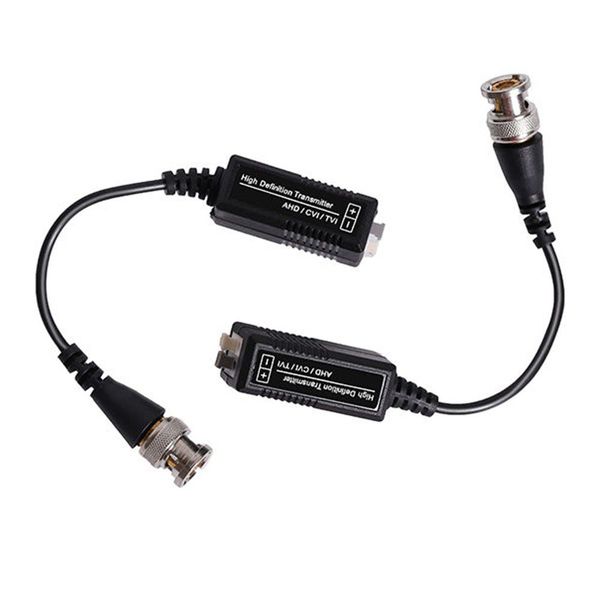

The Utepo Balun 1 Channel Utp Passive Video Transceiver Pair is a passive video transceiver that allows the transmission of real-time video over UTP wires. It is equipped with splicing and push-button design in a compact size, and is compatible with HDCVI/HDTVI/AHD/Analog video. It also has excellent anti-interference, surge protection, and ESD protection.
Product Code: UTP101P-HD6The passive video transceiver allows the transmission of real-time video over UTP wires. Equipped with splicing and push-button design in a compact size, it ensures better management and simple installation. Meanwhile, compatible with HDCVI/ HDTVI/ AHD/ Analog, it is very suitable for video surveillance, such as office building, community, school and hospital etc.Features New design, support splicing, push-button. Plug-and-play; Real-time and stable HDCVI/HDTVI/AHD/Analog transmission result. 500m matches the passive transceiver; 650m matches active transceiver. Excellent anti-interference, surge protection, ESD protection. ABS (Acrylonitrile-Butadiene-Styrene) shell; built-in extended coaxial cable, convenient for intensive engineering projects. Bayonet Nut Connector (BNC); pushing UTP terminal.Specifications
Brand
Utepo
Model
UTP101P-HD6
Video Port
1 Channel
Coaxial Video Port
Male BNC
Twisted-pair Video Port
2-channel pushing terminal
Video Compatibility
HDCVI/HDTVI/AHD, PAL/NTSC/SECAM Video
Bandwidth
0 - 75MHz
Surge Immunity
2KV Per: IEC61000-4-5
ESD Immunity
Level 3,1a Contact Discharge, Level 3,1b Air Discharge
Operating Temperature
-10 to 55C
Storage Temperature
-40 to 85C
Humidity(Non-condensing)
0 - 95%
Casing
Acrylonitrile-Butadiene-Styrene
Product dimensions
mm(l) x mm(w) x mm(h) x 2
Product weight
g
Packaging dimensions
mm(l) x mm(w) x mm(h) x 2
Mass of unit packed
g
Warranty
Manufacturers Warranty
Whats in the box1 x Balun 1 Channel UTP Passive Video Transceiver Pair
