Description

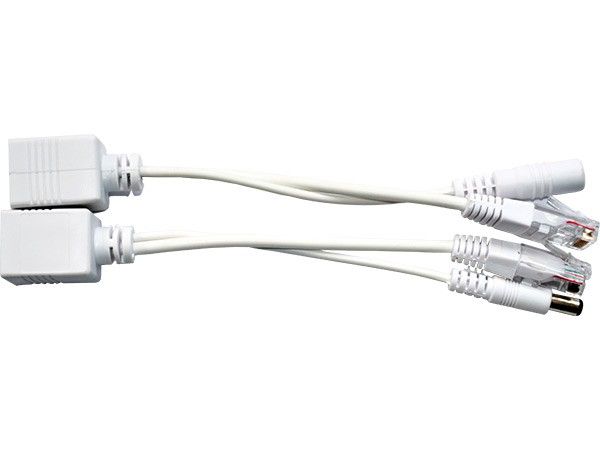

The product is a passive poe injector and splitter set. It is suitable for connecting devices which do not support poe, such as routers. The injector can be used with a wide range of network products such as access points, routers, IP cameras, modems, switches, embedded computers or other network devices.
The Passive PoE Injector & Splitter Set allows you to connect and power any device (Wi-Fi, IP Camera, Intercom and Access Control reader) that supports a 12 to 15VDC power input.Use the injector to inject power over the cat5e/6 cable and splitter to split the power at the device to power it up via an external DC jack.
Manufacturer Code: UTP3-EP01-D1
FEATURES OF THE PoE INJECTOR AND SPLITTER:
1 x 10/100Mbps Injector with standard Female DC connector
1 x 10/100Mbps Splitter with standard Male DC connector
Voltage Range: 12-15VDC
Transmission Distance: 0 to 50m (Cable dependent)
LED status indicator
The Injector is suitable for connecting devices which support passive PoE, such as MikroTik Routerboard
It can be used with a wide range of network products such as Access Points, Routers, IP cameras, modems, switches, embedded computers or other network devices
SPECIFICATIONS OF THE PoE INJECTOR AND SPLITTER:
Ports
1 x RJ45 LAN Port with Standard Female Power Connector
1 x RJ45 LAN Port with Standard Male Power Connector
Power Input
12VDC to 15VDC
Power output
matched to Input power
Maximum Current
-1000mA (not fused)
Transmission Distance
Up to 50m (Dependent on cable)
Transmission Speed
10/100Mbps
Application
Ideal for IP Cameras, Intercomsphone, Wi-Fi Access Points and Access Control Readers
Operating Temperature
-10 ~55
Storage Temperature
-40 ~85
LED Status Indicator
Yes
Product Dimensions
41mm (L) x 24.5mm (W) x 21.6mm (H)
Product Weight
Packaging Dimensions
Mass of unit packed
Warranty
12 months limited manufacturers warranty
WHATS IN THE BOX:
1 xPassive PoE Injector & Splitter Set
Limitations:The images shown are for illustrative purposes only. Actual product may vary slightly.
