Description

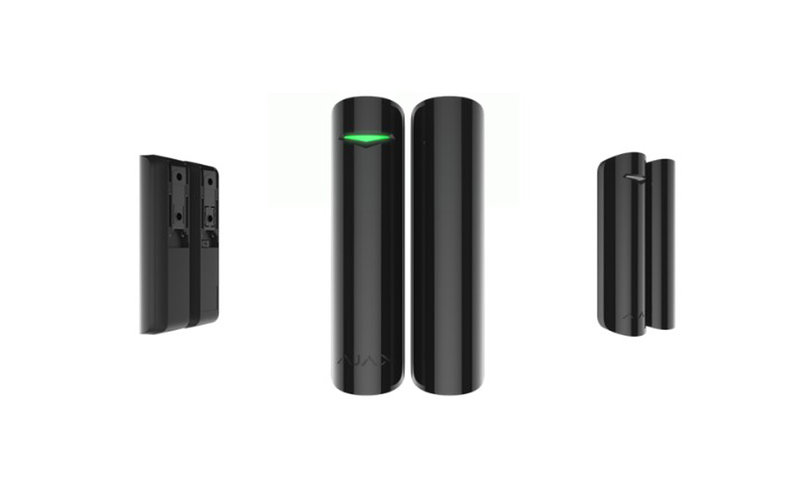

The Ajax Door Protect Plus is a wireless opening detector that notifies you of first signs of intrusion into the room through the door or window. It can be installed even on roof windows which can be left open when leaving the house. The Door Protect Plus has authentication to prevent forgery, jamming detection and communication channels encryption, an alarm signal delivery time of 0.15 seconds, an activation threshold of a small magnet 1 cm and a big magnet 2 cm, tilt of more than 5 degrees, and a power supply of 3 V and battery life of up to 5 years.
Ajax DoorProtect Plus White is a Magnetic Opening Detector with Tilt and Shock Sensor that notifies you of the first signs of intrusion into the room through the door or window. It is installed even on roof windows which can be left open when leaving the house.
Not only can the DoorProtect be used for security reasons but its also common to use opening detectors as an alarm for the care of the elderly, especially those with memory impairments, in social institutions or at home if they live independently despite their age and signs of the disorder, or to monitor children.
Compatibile with all Ajax hubs and Ajax Range Extenders. The detector is not compatible with ocBridge Plus and uartBridge integration modules.
Please note: DoorProtect Plus operates within the Ajax system, connected to the hub via the protected Jeweller protocol.
Product Code: 9999.13.WH1
FEATURES OF THE AJAX DOORPROTECT PLUS:
Wireless Indoor detector
Built-in battery (lasts up to 5 years)
Communication range of 1200m (in an open space/line of sight)
DoorProtect Plus opening sensor protects even windows that are open for ventilation
Supports connection of a third-party wired detector with a normally closed (NC) contact type
Accelerometer registers changes in vertical slope angle, bangs or vibration and sends an alarm to the hub.
Includes magnets of various sizes for installation on narrow frames and door frames
The device consists of two modules detector and magnet.
Tamper resistant
Detector is set up via the Ajax app for iOS, Android, macOS and Windows
System notifications delivered via push notifications, SMS and calls (if activated)
Quick and Easy installation
INSTALLATION AND SET-UP
The Ajax DoorProtect Plus comes ready to operate straight out the box.
The battery is pre-installed, so there is no need to disassemble the detector.
With one click, it can be connected to the hub in the mobile application. It can be mounted on the SmartBracket in just a few minutes.
SPECIFICATIONS OF THE AJAX DOORPROTECT PLUS:
Compatibility
Operates with all Ajax hubs and Ajax Range Extenders
Classification
Combined point magnetic contact and vibration radio channel security detector
Type of detector
Wireless
Installation method
Indoors
Sensing element
Reed switch, accelerometer
Alarm signal delivery time
0.15 s
Activation threshold
Small magnet - 1 cm
Big magnet - 2 cm
Tilt
More than 5
Power supply
CR123A battery, 3V
Battery life
Up to 5 years
Communication range with central unit
Up to 1,200 m in an open space
Two-way communication between devices
Yes
Operating frequencies
868.0-868.6 MHz
Self-adjusting RF output power
Up to 20 mW
Block encryption based on AES algorithm
Yes
Detector polling period
12300 s
Temperature sensor
Available
Operating temperature range
From -10 to +40
Permissible humidity
Up to 75%
Protection against fraud
Yes
Jamming detection
Yes
Tamper-resistant
Yes
Remote setting and testing
Yes
Certification
Grade 2, CE
Product Dimensions
Diameter: 20 mm & Height: 90 mm
Product Weight
29g
Packaging Dimensions
99 mm x 57 mm x 32 mm
Mass of unit packed
200g
Warranty
24 months limited Manufacturers warranty. The warranty does not cover batteries.
WHATS IN THE BOX:
1 x Ajax DoorProtect Plus White
