Description
The Cudy FS1018PS1 18-Port 10/100M PoE+ Switch is a security surveillance Ethernet switch aimed at high definition surveillance and security. It supports bandwidth speeds of up to 7.2Gbps and features 16 PoE ports and 2 uplink ports. It also complies with IEEE802.3af/at Standard speeds for great performance. The 18 port switch supports 120W total PoE power and up to 30W for one PoE port. It uses Auto-sensing technology to automatically detect how much power is needed depending on the cable used. For additional protection, it features Port-Power-Prioritization technology which ensures continuous power supply of key nodes. In addition to this, it also offers lightning protection with an electrostatic standard of 6KV for contact and 8KV for air.
Description

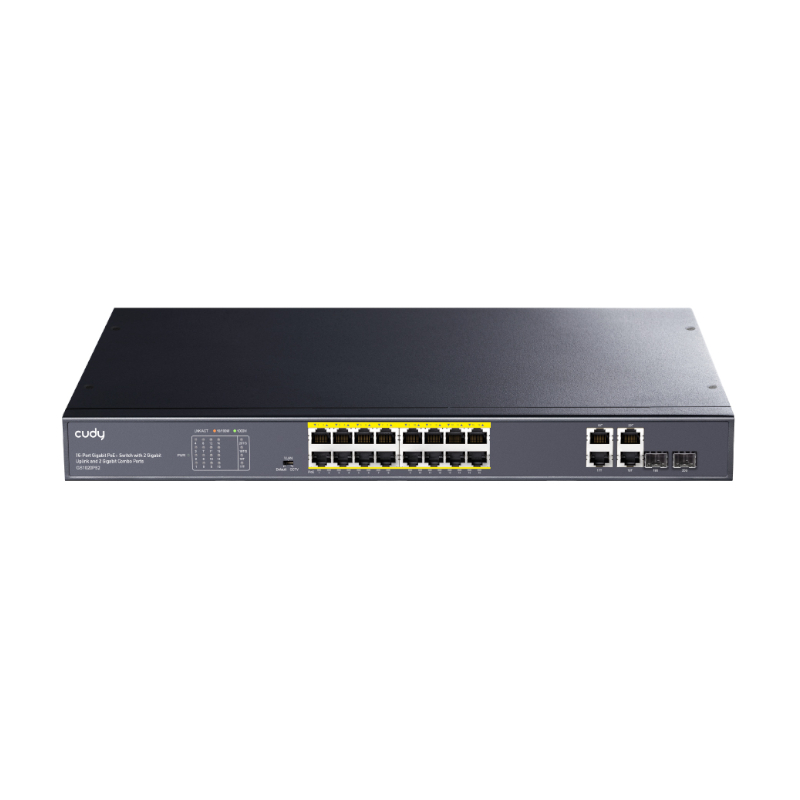

The Cudy GS1020PS2 16-Port Gigabit PoE+ Switch offers the forwarding capacity to simultaneously process traffic on all ports at a line rate without any packet loss. It supports bandwidth speeds of up to 18Gbps and features 16 PoE ports and 2 Gigabit SFP ports.
The 16 port switch supports 200W total PoE power and up to 30W for one PoE port. For additional protection, it features power auto-detection for devices. This feature will not burn non-standard PoE devices or normal PoE switches. A VLAN mode helps isolate the ports from each other for even further protection. It also complies with IEEE802.3af/at Standard speeds for great performance.
Used for many applications the Cudy GS1020PS2 works with IP Cameras for home, office or small businesses. It also works well with VoIP phones for business conferences and WiFi APs for the office and businesses. It even features a CCTV mode for longer distances up to 250 meters.
Its simple plug and play interface makes it incredibly easy to use. Its sturdy design is made from high-quality metal. This gives you a longer service life and provides better heat dissipation, making it suitable for most environments. It also features a fanless design for silent operation.
FEATURES:
IEEE 802.3af / 802.3at standard compliant
200-watt total PoE power budget, up to 30-watt per port
16xGbE PoE+Port+2 x SFP Port
CCTV Mode supports remote power & data feeding up to 250M
VLAN mode supports 16 POE+ ports isolated from each other
LED indicators for network diagnostics
19-inch metal case, internal power design
SPECIFICATIONS:
Connector Type: 16 x 10/100/1000M PoE Ports + 2 x Gigabit SFP Uplink Ports
Network Media (Cable): IEEE802.3, IEEE802.3u, IEEE802.3x, IEEE802.3ab, IEEE802.3z
PoE Parameters:
PoE Standard: IEEE802.3af /IEEE802.3at
Max each port: 15.4W ( IEEE 802.3af )
Max each port30W ( IEEE 802.3at )
PoE compatibility: IEEE 802.3af/at adaptive
PoE port output: DC48-55V
Power Pin : Power over spare pairs 1/2(+) , 3/6 (-)
Network Media:
10BASE-T: Cat 5E UTP(250 meter)
100BASE-TX: Cat5 or more UTP (100 meter)
1000BASE-TX: Cat5 or more UTP (100 meter)
Optical:
Multi-Mode Fiber: 850nm, 1310nm, Transmission Distance: 550m/2Km
Single-Mode Fiber: 1310nm, 1550nm, Transmission Distance: 20/40/60/80/100/120km
Performance Specification:
Bandwidth: 52Gbps
MAC: 8K
Packet Neck Scarfer Memory: 4M
Packet Forwarding Rate: 38.7Mpps
Power Supply:
Power input: AC100-240V 50/60Hz, Power Budget: 200W
LED Indicator:
PWR: Power supply indicator(Red)
1-26: RJ-45 LINK indicator(Green)
1-26: RJ-45 ACT indicator(Green)
WHAT'S IN THE BOX:
Cudy GS1020PS2 16-Port Gigabit PoE+ Switch - Grey x1
Power Adapter x1
