Description

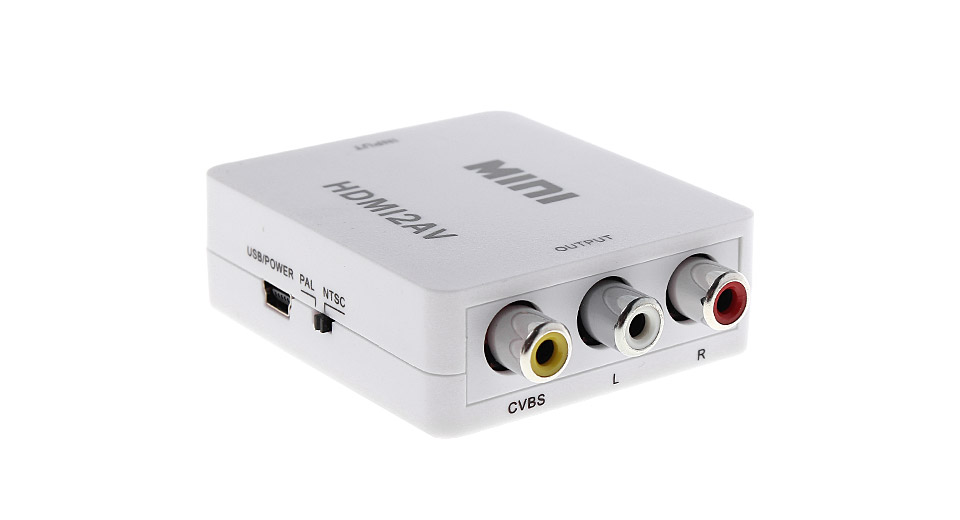

The HDMI to AV Converter is designed to convert HDMI signals into analog signals for use with AV equipment. It is compliant with HDMI 1.3 and HDCP 1.3 standards, and can support resolutions up to 1080P@60Hz with color depth up to 10-bit and 12-bit. It also supports LPCM 2CH audio formats.
Technical
HDMI Compliance
HDMI 1.3
HDCP Compliance
HDCP 1.3
Video Bandwidth
4.95 Gbps
Video Resolutions
up to 1080P@60Hz
Color Space
RGB, YCbCr 4:4:4, YCbCr 4:2:2
Color Depth
10-bit, 12-bit
Audio Formats
LPCM 2CH
ESD Protection
Human body model 8kV (air-gap discharge) & 4kV (contact discharge)
Connections
Inputs
1x HDMI Type A [19-pin female]
Outputs
1x RCA [Composite video]
2x RCA [Stereo audio]
Mechanical
Housing
Plastic Enclosure
Dimensions
66mm [W] x 55mm [D] x 20mm [H]
Net Weight
40g
Power Supply
HDMI Source Powered
Power Consumption (Max)
0.5W
Operation Temperature
32 - 104F / 0 - 40C
Storage temperature
-4 - 140F / -20 - 60C
Relative Humidity
20 - 90% RH (no condensation)
