Description
This is a Nvidia RTX 2060 6GB GDDR6 Graphics Card. It has a PCI Express 3.0 x16 interface, a Video Chipset Nvidia GeForce RTX 2060, 1920 Stream Processors, 120 Texture Mapping Units, 48 Render Output Units, 30 Ray-tracing Cores, and 4 Max Monitors. It supports DirectX 12.0, OpenGL 4.6, and VR Ready. It has a Video Memory Type Video Controller Memory and a Memory Type GDDR6 SDRAM. The installed Video Memory Storage Capacity is 6 GB and the Video Memory Speed is 14000 MHz. The Memory Bus Bandwidth is 192 bit and the Memory Bandwidth is 336 GB/s. The DVI Interface Quantity is 1 and the DVI Interface Connector Type is 24 Pin DVI-D. The HDMI Interface Quantity is 1 and the HDMI Interface Connector Type is HDMI (Type A). The DisplayPort Interface Quantity is 1 and the External Power is 8 pin. The PSU Output Power Required is 500 W and the Cooling System Type is VGA Cooler.

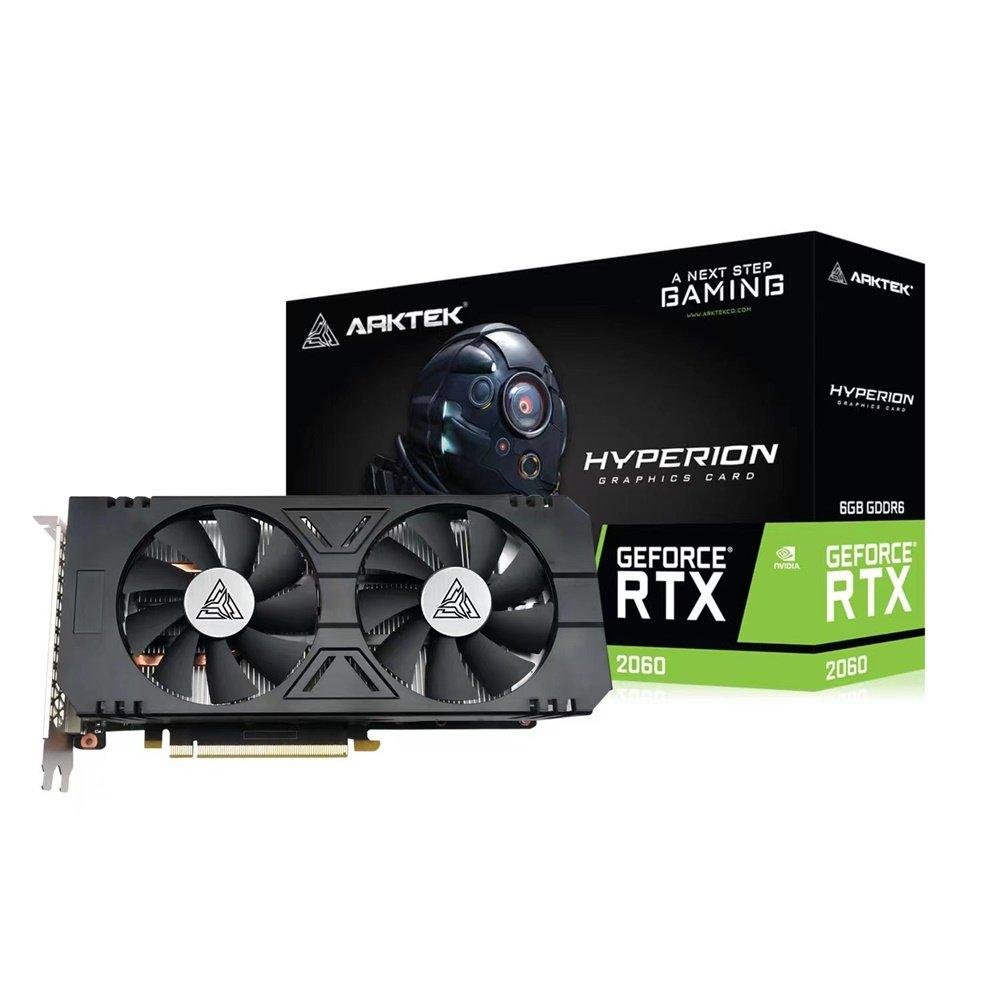

Arktek Nvidia RTX 2060 6GB GDDR6 Graphics Card AKN2060D6S6GH1
PCI Express 3.0 x16
Video Chipset Nvidia GeForce RTX 2060
GPU Core Name TU106-200-KA-A1
GPU Core Speed 1365 MHz
GPU Core Speed Boost 1680 MHz
GPU Quantity 1
Stream Processors Quantity 1920
Texture Mapping Unit Quantity 120
Render Output Units Quantity (ROP) 48
Tensor Core Quantity 240
Ray-tracing Cores Quantity 30
Max. Monitors Supports 4
Maximum Resolution 7680*4320
2D/3D Features Nvidia High Dynamic-Range (HDR) Support
Nvidia G-Sync
VR Ready
Real-Time Ray Tracing
Nvidia Turing
API Supports DirectX 12.0
OpenGL 4.6
Video Memory Type Video Controller Memory
Memory Type GDDR6 SDRAM
Installed Video Memory Storage Capacity 6 GB
Video Memory Speed 14000 MHz
Memory Bus Bandwidth 192 bit
Memory Bandwidth 336 GB/s
DVI Interface Quantity 1
DVI Interface Connector Type 24 Pin DVI-D
HDMI Interface Quantity 1
HDMI Interface Connector TypeHDMI (Type A)
DisplayPort Interface Quantity 1
External Power8 pin
PSU Output Power Required 500 W
Cooling System Type VGA Cooler
Card Slot Width 2 slot
