Description
The all-in-one energy storage solar system includes a 1000W inverter, a stacked solar energy storage battery with a capacity of 960Wh, and a battery protection system. The system is designed to support different load appliances, and is based on the original cabinet design. The inverter is rated at 1000W and has a Pure Sine Wave output. The system is capable of charging a battery at up to 50A, and has a combined charging current of 70A. The system is also capable of operating at temperatures between 0 and 45 degrees Celsius, and can discharge up to 60 degrees Celsius.

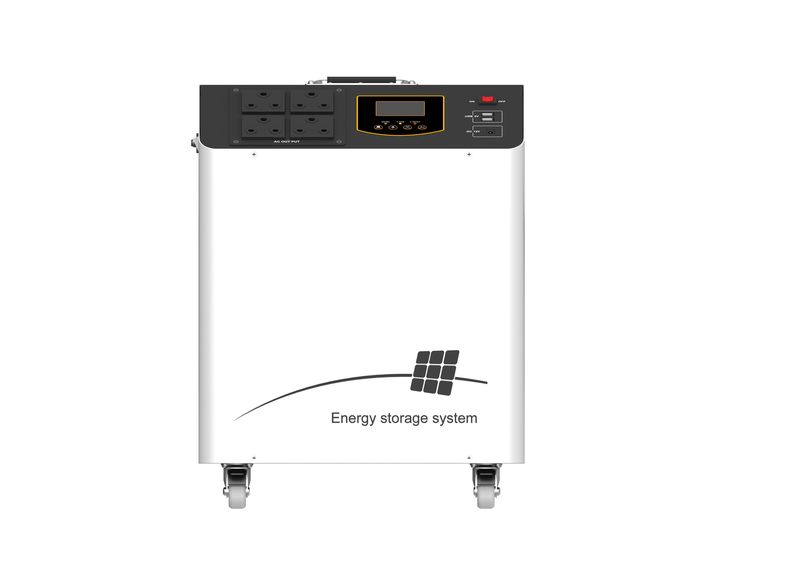

All-In-One Energy Storage Solar System
May the power be with you
BP1800 Series
HBP 1800 series all-in-one energy storage solution, support 1KW output for different load appliances. It's based on the original cabinet design, stacked with solar energy storage lithium battery 960wh, and built in battery protection system, fully retain the use of load power in applications of residentail, school, commercail and public utility area.
1000W - Pure Sine Wave Inverter
4000+ Charge Cycle
24/7 UPS Plug & Play Use
2 x USB ports for DC Load
Features higher capacities for greater compatibility with more power-hungry devices, and the latest in USB-C Power Delivery capable of charging larger USB devices like laptops.
Includes pre-installed solar charging optimization module that functions as a maximum power point tracker (MPPT), resulting in up to 40% faster charge times.
With LiFePO4 lithium cells, known for stability and safety, monitored by a state-of-the-art battery management system that prevents overcharge, over-current, and short circuiting.
Built in Multi safety protection that include short circuit, overload and over-temperture and error code reporting
Specifications
Model: NV-BP18-1012
Inverter:
Rated power: 1000W
Output voltage waveform: Pure sine wave
Output voltage regulation: 230Vac 5%
Output frequency: 50Hz / 60Hz ( 0.2Hz)
Peak efficiency: 90%
Nominal DC input voltage: 12Vdc ( 0.3)
Standby Consumption: < 25W
PV Input:
Max solar power input: 900W
PV max charging current: 60A( 3A)
Combined charging current: 70A( 4A)
Max efficiency:
PV array open circuit voltage: 105VDC
PV Array MPPT Voltage Range: 15~105V
AC Input:
AC input voltage: 230Vac 5%
Acceptable input voltage range: 90-280VAC
Nominal input frequency: 50Hz / 60Hz (Auto detection)
Transfer time: 10ms typical (UPS, VDE); 20ms typical (APL)
AC Charge:
Charging current @ Nominal input voltage: 10/20A ( 4A)
Charging Algorithm: 4-step (Li)
Output:
AC output: 230Vac (Socket x 4pcs)
USB (5V 2.4A): DC output x 2pcs
USB (12V 1A): DC output x 1pcs
Lithium Battery:
Energy: 960Wh
Nominal voltage:12.8V
Battery capacity:75Ah
Protection board:100A
Standard charging & discharge current: 50A
Operation temperature:
Charge 0~45
Discharge -10~60
