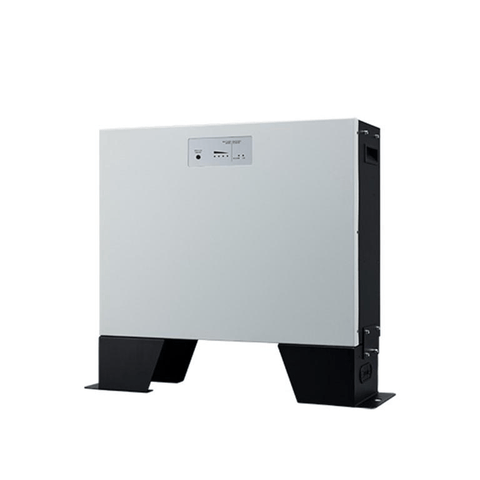

RCT Voltronic Lio-ii 4810 5000WH 51.2VDC Lifepo Battery Module

Brand	RCT
Manufacturer	RCT
Model Number	LIO-II 4810

The RCT Voltronic LIO-II 4810 5000WH 51.2VDC Lifepo Battery Module is a battery module specifically designed for energy storage systems with 48V system. It features a Lithium Iron Phosphate cell that guarantees safety and reliability, and is easy to install on the floor. It is suitable for wide range of inverters with 48V system, and can be fully charged in shorter time. It is also modular design for easy scalable. The battery module can have a maximum lifespan of 8000 cycles with 60% DOD and 2000 cycles with 90% DOD.

RCT Voltronic LIO-II 48105000Wh 51.2vDC LiFePO Battery Module
LIO II-4810 is Lithium-ion battery module speciallydesigned for energy storage system with 48V system
Features
Lithium Iron Phosphate (LFP) cell guarantees safety and reliability
Easy to install on the floor
Suitable for wide range of inverters with 48V system
More Features
Compact size and Lightweight
Built-in Lithium Iron Phosphate (LFP)cell with less space and weight.
Fast charging
Battery module can be fully charged inshorter time.
Modular design for easy scalable
Battery module can be easily stacked andadded for energy expansion.
Maximum Lifecycle
8000 cycles is for 60% DOD with >50% capacity
2000 cycles is for 90% DOD with >80% capacity
Technical Specification
Battery Module:LIO II-4810 (5 kWh, 51.2V)
Battery Cell Technology: Lithium Iron Phosphate
Applicable Inverter Rating: * 5.6 kW
Number of Module: 1
Usable Energy: 5 kWh
Rated Discharging Current: 150 A
Peak Discharging Current:192 A, 1 min
Nominal Voltage:51.2 V DC
Operating Voltage: 38 - 56VDC
Charging Current: 100A Max, 30A Default
General
Operation Charge Temperature: 0C~50 C
Operation Discharge Temperature: 0C~50 C
IP Protection: IP20
Communication: RS485 port (RJ45), CAN
