Description
The Teltonika RUTX50 Industrial Cellular 5G Router is a dual-SIM multi-network router that offers 5G mobile communication for high-speed and data-heavy applications. It supports both architectures to leverage the 5G infrastructure, and backward compatible with 4G (LTE CAT 20) and 3G network technologies. The router has 5x Gigabit Ethernet ports and dual-band Wi-Fi, and provides data connection redundancy with auto-failover. The router also has multiple wireless connectivity features, including WiFi mesh (802.11s), fast roaming (802.11r), and relayd. The router has 1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover, and 4 x LAN ports, 10/100/1000 Mbps. The router also has 1 x USB A port for external devices.

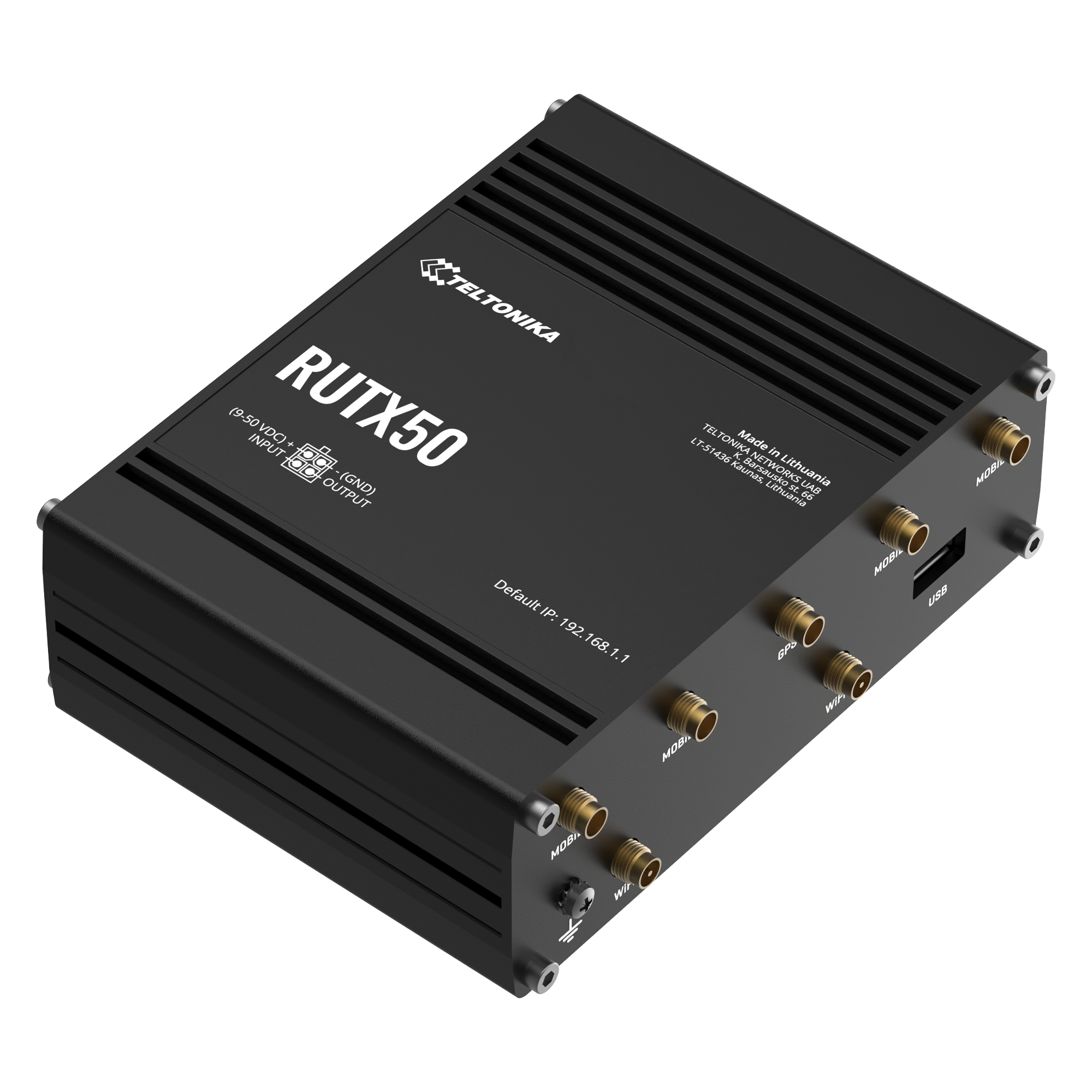

Teltonika RUTX50 Industrial Cellular 5G Router
RUTX50 is a dual-SIM multi-network router offering 5G mobile communication for high-speed and data-heavy applications. Together with 5x Gigabit Ethernet ports and dual-band Wi-Fi, it provides data connection redundancy with auto-failover. Backward compatibility and multiple interfaces allow for long-term expandability and upgrading options.
Features
5GUltra-high cellular speeds of up to 3.3 Gbps
DUAL SIM - With auto failover, backup WAN and other switching scenarios
Supports both architectures to leverage the 5G infrastructure
Backward compatible with 4G (LTE CAT 20) and 3G network technologies
Technical Specification
Mobile module:5G Sub-6Ghz SA/NSA 2.1/3.3Gbps DL (4x4 MIMO), 900/600 Mbps UL (2x2); 4G (LTE) LTE Cat 20 2.0Gbps DL, 200Mbps UL; 3G 42 Mbps DL, 5.76Mbps UL
SIM switch:2 SIM cards, auto-switch cases: weak signal, data limit, SMS limit, roaming, no network, network denied, data connection fail, SIM idle protection
Status:Signal strength (RSSI), SINR, RSRP, RSRQ, EC/IO, RSCP, Bytes sent/received, connected band, IMSI, ICCID, Carrier aggregation
SMS:SMS status, SMS configuration, send/read SMS via HTTP POST/GET, EMAIL to SMS, SMS to EMAIL, SMS to HTTP, SMS to SMS, scheduled SMS, SMS autoreply, SMPP
USSD:Supports sending and reading Unstructured Supplementary Service Data messages
Black/White list:Operator black/white list
Multiple PDN:Possibility to use different PDNs for multiple network access and services
Band management:Band lock, Used band status display
APN:Auto APN
Bridge:Direct connection (bridge) between mobile ISP and device on LAN
Passthrough:Router assigns its mobile WAN IP address to another device on LAN
Wireless mode:802.11b/g/n/ac Wave 2 (WiFi 5) with data transmission rates up to 867 Mbps (Dual Band, MU-MIMO), 802.11r fast transition, Access Point (AP), Station (STA)
WiFi security:WPA2-Enterprise - PEAP, WPA2-PSK, WEP, WPA-EAP, WPA-PSK; AES-CCMP, TKIP, Auto Cipher modes, client separation
SSID/ESSID:ESSID stealth mode
WiFi users:up to 150 simultaneous connections
Wireless Hotspot:Captive portal (Hotspot), internal/external Radius server, SMS authorization,internal/external landing page, walled garden, user scripts, URL parameters, user groups, individual user or group limitations, user management, 9 default customizable themes
Wireless Connectivity Features:Wireless mesh (802.11s), fast roaming (802.11r), Relayd
WAN:1 x WAN port 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
LAN:4 x LAN ports, 10/100/1000 Mbps, compliance with IEEE 802.3, IEEE 802.3u, 802.3az standards, supports auto MDI/MDIX crossover
Ethernet ports:5 x RJ45 ports, 10/100/1000 Mbps
I/Os:1 x Digital Input, 1 x Digital Output on 4-pin power connector
Status LEDs:3 x connection status LEDs, 3 x connection strength LEDs, 10 x Ethernet port status LEDs, 4 x WAN status LEDs, 1x Power LED, 2 x 2.4G and 5G WiFi LEDs
SIM:2 x SIM slot (Mini SIM 2FF), 1.8 V/3 V
Power:1 x 4-pin power connector
Antennas:4 x SMA for LTE, 2 x RP-SMA for Wi-Fi, 1 x SMA for GNNS
USB:1 x USB A port for external devices
