Description

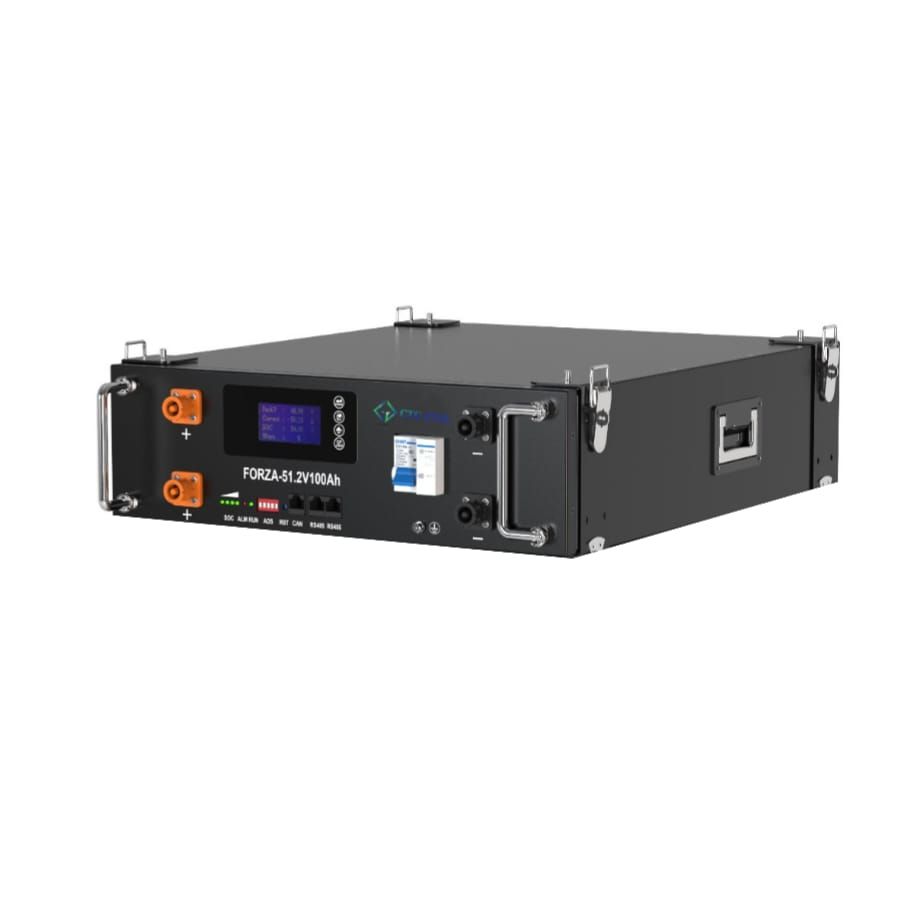

The Lithium-ion Battery is a 5.12KWH-100AH-51.2V battery with a configuration of 1P16S. It has a nominal voltage of 51.2V and a working voltage range of 42V to 58.4V. The nominal capacity is 100Ah and the rated energy is 5.12KWh. The battery can handle a maximum charging and discharge current of 100A at 25 degrees Celsius. It has a working temperature range of 0 to 40 degrees Celsius for charging and -20 to 40 degrees Celsius for discharge. The battery has a storage temperature range of -10 to 35 degrees Celsius and a humidity range of 25% to 2% for up to three months of storage. It has dimensions of 530mm x 442mm x 133mm and weighs 45kg. The battery has a cycle life of 4000 cycles at 25 degrees Celsius with a charge and discharge current of 50A and a 70% standard capacity and 80% depth of discharge. It has an IP grade of 21 and can communicate through CAN and RS485. The battery can be used in altitudes up to 3000m and in
Product Specification:
1. Configuration 1P16S
2. Nominal Voltage(V) 51.2V
3. Working Voltage(V) 42V~58.4V
4. Nominal Capacity(Ah) 100Ah
5. Rated energy(kWh) 5.12KWh
6. Rated charge/discharge Current(A) 100A @25 2
7. Maximum charging current 100A@25 2
8. Maximum discharge current 100A @25 2
9. Working Temperature: 0 40(Charge) - 20 40(Discharge)
10. Storage temperature -10~35 and humidity 25 2(Within three months of storage)
11. Dimension(LxWxH) (530) (442) (133)mm
12. Weight 45Kg 3kg
13. cycle life 4000 cycles @25 50A charge and discharge current 70% standard capacity 80% DOD
14. IP grade IP 21
15. Communication mode CAN&RS485
16. Altitude 0-3000m
17. Humidity range 5~80%
18. Compatible inverters: SRNE, Growatt, Goodwe, Victron, Deye, Luxpower etc.
What's in the box
1 x 5.12Kwh Lithium Ion Battery
1 x Hanging Ears
1 x 1.5m power cable
1 x Data sheet
