Description

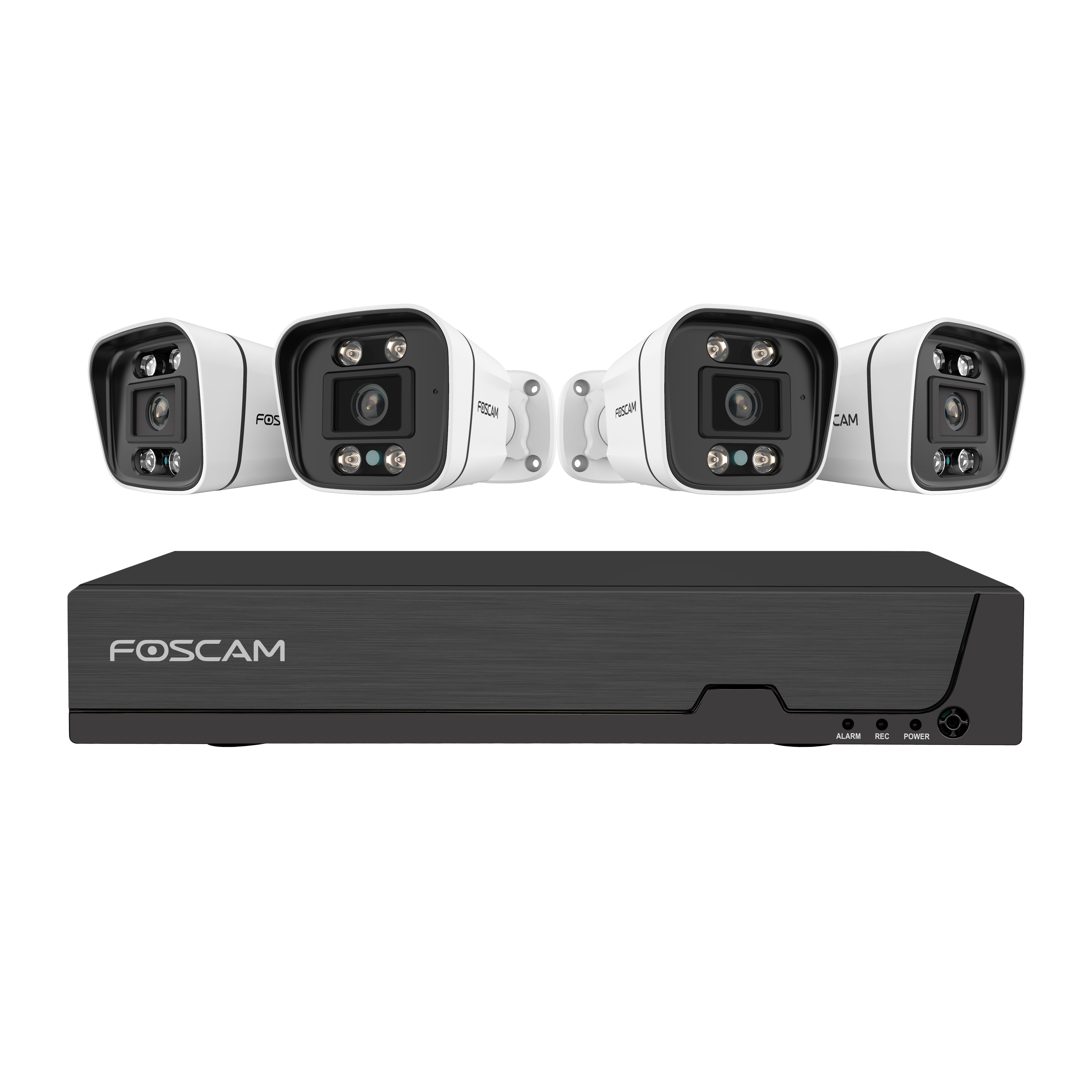

The FN9108E-B4-2T is a centralized management system that supports 24/7 video recording and monitoring for complete protection of your home. It features easy installation with Power over Ethernet connection and advanced human/vehicle detection to reduce false alarms. The system includes 8 channels for QHD IP camera input and supports up to 5MP resolution per channel. It also has efficient video streaming with H.264+ compression and supports ultra-long continuous recording with external hard drives up to 16TB. The system includes an NVR with 8 channels for video input and HDMI/VGA outputs, as well as a camera with a 5MP resolution, night vision, and audio capabilities. The camera is also waterproof and can be powered by the NVR. The system is compatible with various operating systems and smartphones.
Centralized Management
Support viewing, video playback, 7*24 hours non-stop video recording, and keeping an eye on every corner of your home.
Complete Protection
Get the whole system for complete protection. After being powered, four cameras will connect to the NVR in the same system automatically and provide your home with complete protection.
Easy Installation
With Power over Ethernet connection, each DIY user can use a single network cable to connect each POE camera to Foscam NVR for both power supply and video recording.Just hook each camera up with the NVR and the whole security system can be seen day and night.
Human/Vehicle Detection
Say goodbye to the unwanted alarms triggered by moving branches or flying bugs.With advanced human/vehicle detection, the camera identifies true threats in the light of cutting-edge detection algorithms, giving you the utmost peace and relief.
5MP POE IP Camera
This home POE camera comes with 5MP resolution and provides high-definition images. 7*24h continuous video monitoring, no matter day or night.
More Efficient Streaming for Optimum Viewing Experience
It supports video stream compression H.264+ Codec, which has the advantages of storage and bandwidth savings with greater efficiency and achieves high-quality video preview and recording in low-bit rate.
Supports ultra-long continuous 24/7 recording (supports external hard drive up to 16TB). The table below shows how long the Foscam NVR can record 24/7 under different HDD capacities for reference.
NVR
FN9108E - NVR
Video Input
IP Video Input
8 Channels QHD IP camera input
Video Output
HDMI Output
1*HDMI
VGA Output
1*VGA
Display Resolution
3840x21602560x1440,1920x1080,1440x900,1280x1024,1280x800,1280x720,1024x768
Recording
RecordingResolution
Up to 5MP per channel (8ch@5MP)
Record Mode
Time Scheduled / Motion Detect
CompressionFormat
H.264/H.264+
Playback
SynchronousPlayback
8 channels synchronous video playback
Playback Mode
Pause / Stop / Slow / Fast/ Frame Play
HDD
Capacity
Up to 16TB
Network
POE Standard
IEEE 802.3at/af
Network Protocol
IP, TCP, UDP, SMTP, DHCP, RTSP
External Interface
Network Interface
1* 10/100 Mbps RJ45 port
USB Interface
2* USB2.0 interface for mouse and external storage
Button
1* Power on/off button,1* Reset button
Language
17 languages
Physical and Environmental
Power Supply
DC 48V/2A
Dimension (LxWxH)
255mm*238mm*50mm
Net Weight (g)
880g
Operating Temperature
0C ~ 55C (32F ~ 131F)
Operating Humidity
20% ~ 85% non-condensing
Storage Temperature
-20C ~ 60C (-4F ~ 140F)
Storage Humidity
0% ~ 90% non-condensing
Camera
Model
V5EP - Camera
Image Sensor
Sensor Type
High Definition Color CMOS Sensor
Display Resolution
5.0M Pixels(3072*1728)
Min. Illumination
0 Lux (With IR Illuminator)
Lens
Lens Type
f:4mm,F2.1
Night Vision
20m
Night mode
Manual and automatic modes, when the white light is on, the night vision image is colored
Angle of view
Diagonal: 94, Horizontal: 78, Vertical: 43.6
Audio
Input/Output
Built-in mic and speaker,support full duplex 2-way Audio
Audio Compression
PCM/AAC
Siren
Support maximum 100dB alarm siren
Connectivity
802.3af PoE
Ethernet
RJ45
Other Features
Video Format
H.264/H.264+
Multi-Stream
Dual streams
Motion Detection
Human Detection
Vehicle Detection
Day/Night
WDR
Zoom
6X digital zoom function
Spotlight
System Requirements
Operating System
Microsoft Windows (Foscam VMS), Mac OS (Foscam VMS), Android (Foscam app), IOS (Foscam app)
Smart Phone
IOS, Android,3G/4G/5G Smartphones
Physical and Environmental
Waterproof
IP66
Net Weight
342g
Power
Powered by PoE NVR
Power Consumption
5 Watts (Max.)
Dimension (LxWxH)
170(L)x66 (W)x66 (H)
Certification
FCCCERoHSIP66
Operating Temperature
-20C ~ 50C (-4F ~ 122F)
Operating Humidity
10% ~ 80% non-condensing
Storage Temperature
-20C ~ 60C (-4F ~ 140F)
Storage Humidity
0% ~ 90% non-condensing
