Description

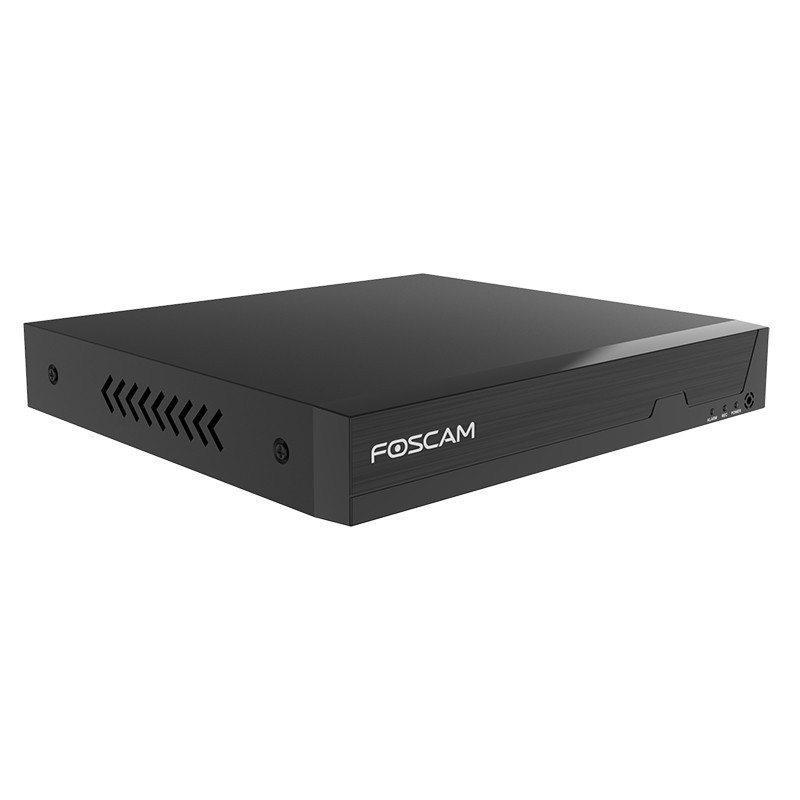

The Foscam FNA108HE Nvr is a network video recorder that supports up to 4K resolution and can manage up to 8 cameras at once. It is compatible with hard drives up to 16TB and has real-time motion detection for instant alerts on your smartphone. The Nvr also has HDMI and VGA output, a Foscam app for live viewing and playback, and supports continuous 24/7 recording. It also has Power over Ethernet for easy installation and is compatible with various operating systems and devices.
4K Ultra HD: Supports up to 4K resolution for sharp and detailed video.
8-Channel NVR: Facilitates connection and management of up to 8 cameras simultaneously.
Compatible with hard drives up to 16TB.
Real-Time Motion Detection: Provides instant alerts on your smartphone upon detecting movement.
Broad Compatibility: Works well with Foscam and other brand IP cameras.
Easy Setup: Foscam IP cameras can be installed via a plug-and-play setup.
HDMI and VGA Output: Supports connection to a range of displays.
Foscam App: Enables live viewing, playback, downloads, and sharing of footage.
Never Miss A Moment
This network video recorder support up to 16TB hard drive (not included) for 24/7 continuous recording. Youll never miss a moment. Scheduled or motion-triggered recording option allows you to record even longer.
More Efficient Streaming for Optimum Viewing Experience
It supports video stream compression H.264+ Codec, which has advantages of storage and bandwidth savings with greater efficiency and achieves high quality video preview and recording in low-bit rate.
Supports ultra-long continuous 24/7 recording (supports external hard drive up to 16TB). The table below shows how long the Foscam NVR can record 24/7 under different HDD capacities for reference.
Power over Ethernet
Power over Ethernet (PoE camera) for easy installation, no matter day or night, rain or shine.
Specs Table
ITEMS
FNA108HE
Video Input
IP Video Input
8 Channels UHD IP camera input
Video Output
HDMI Output
1*HDMI
VGA Output
1*VGA
Display Resolution
3840x21602560x1440,1920x1080,1440x900,1280x1024,1280x800,1280x720,1024x768
Recording
RecordingResolution
Up to 8MP per channel ( 8ch@8MP )
Record Mode
Time Scheduled / Motion Detect
CompressionFormat
H.264/H.264+
Playback
SynchronousPlayback
8 channels synchronous video playback
Playback Mode
Pause / Stop / Slow / Fast/ Frame Play
Network
POE Standard
POE Standard
Network Protocol
IP, TCP, UDP, SMTP, DHCP, RTSP
HDD
Capacity
Up to 16TB
External Interface
Network Interface
1* 10/100/1000 Mbps RJ45 port
USB Interface
2* USB2.0 interface for mouse and external storage
Button
1* Power on/off button,1* Reset button
System Requirements
Operating System
Microsoft Windows (Foscam VMS), MacOS (Foscam VMS), Android (Foscam app), iOS (Foscam app)
Smart Phone
iOS, Android, 3G/4G/5G Smartphones
Language
Language
17 languages
Physical and Environmental
Power Supply
DC 48V/2A
Dimension(LxWxH)
255mm*238mm*50mm
Net Weight (g)
880g
Operating Temperature
0C ~ 55C (32F ~ 131F)
Operating Humidity
20% ~ 85% non-condensing
Storage Temperature
-20C ~ 60C (-4F ~ 140F)
Storage Humidity
0% ~ 90% non-condensing
