Description

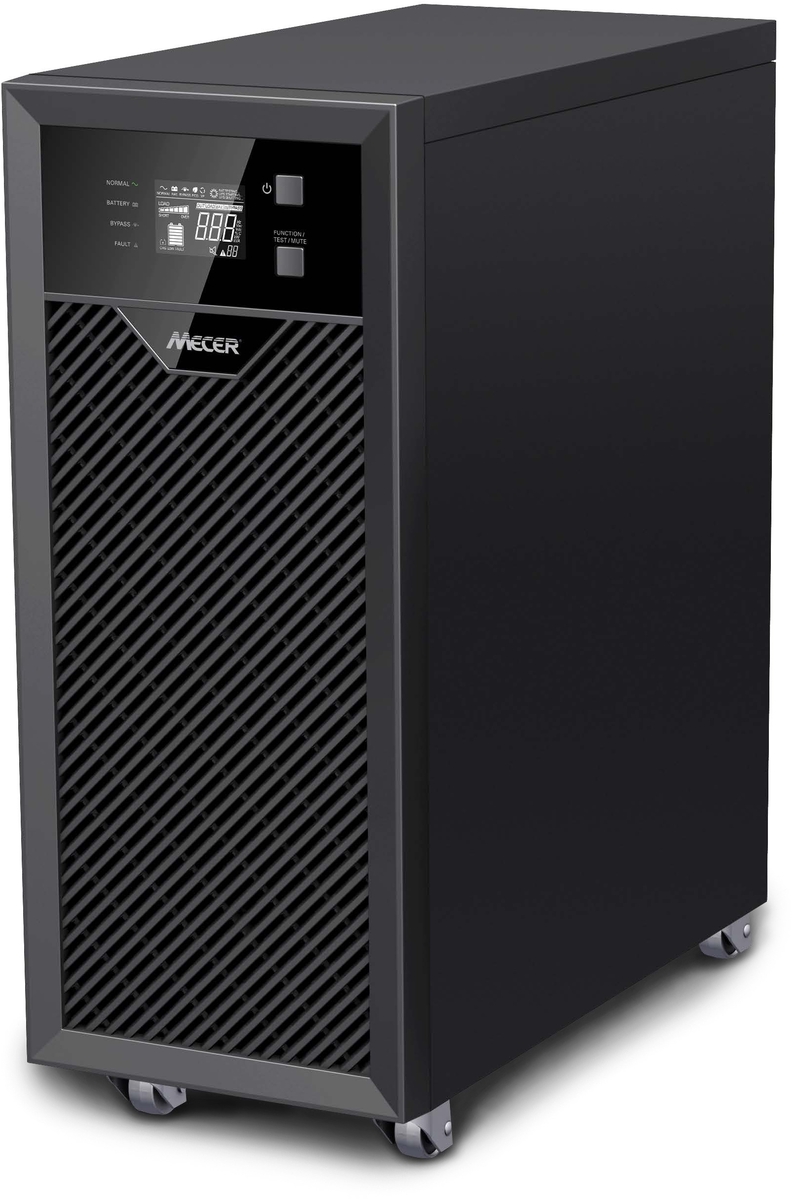

Mecer ME-6000-WPTV 6000VA 6000W On-line Pure Sine Wave UPS
Mecer ME-6000-WPTV 6000VA / 6000W On-line Pure Sine Wave UPS - Tower
With AVR, Monitoring Software + cable, Built-In Surge protector
** Please Note: 12 month component warranty, 6 month battery warranty on all UPS **
Specifications
Product Code ME-6000-WPTVa
item ME-6000-WPTV / ME-10000-WPTV
Dimensions W*D*H(mm) 248 x 500 x616 248 x500 x616
Weight(kg) 58.9 62.1
Power
Apparent Power(KVA) 6KVA / 10KVA
Active power(KW) 5.4KW / 9KW
Mains
Voltage range 120Vac-275Vac(phase to phase)
Current 32.1A max 52.6 A max
Frequency range 40Hz-70Hz
Power factor 0.99
Output
Rating Voltage 230Vac(1%)
Rating Current 27A 45A
Frequency range 50Hz x (11%), Follow main power in phase lock range
Power factor 0.9
105%-125%, load transfer to bypass mode after 10 min (0-30C) or
1min(30-40C)
Output Overload 125%-150%, load transfer to bypass mode after 30s
Over 150%, load transfer to bypass after 0.5s
Load crest ratio 3:1( max)
THD
