ADA Cube 3D Cross Line Laser and Tripod Kit
Description

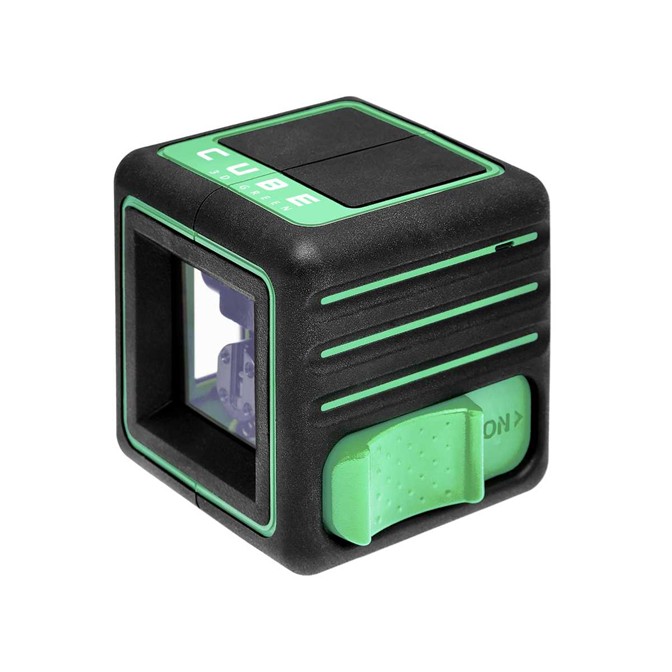

The ADA Green Cube 3D is the most compact line laser withtwo verticalandone horizontallines. The green beams are brighter than red laser beams, providing better visibility.
3-Beam Cross line
40m Range
Includes Tripod
Two vertical and one horizontal lines
Laser diode:Class 2, 515 nm, < 1 mWt
Shock Proof Housing:The housing has a strong structure. Rubber parts protect the instrument against damages
Due to the ribbed surface the instrument wont slip out of your hands
Easy Operation:Switching on and unlocking with one button
Automatic self-leveling.
Maximum deviation from the vertical axis makes up 3. In case of deviation the acoustic alarm activates.
1/4 thread at the bottom of the instrument allows to set it on the tripod or universal mount
Tripod Included: Light aluminium for height from 35 up to 110 cm. Smooth adjustment of the height in the range of 25 cm. The tripod provides for quick installation of the level at the required height in any place.
Rating
Semi-Industrial
Range
40m
Beam Color
Green
Number of Lines
3
Battery Life (hours)
15
Accuracy
2 mm @ 10m
Laser Class
2
Protection Class
IP54
Battery
3 x AAA
PRODUCT CONTENTS
1x Laser Level, 3x Batteries, 1x Tripod, 1x Pouch
ADA 2-YEAR WARRANTY
This product is warranted by the manufacturer to be free from defects in material and workmanship under normal use for a period of two (2) years from the date of purchase.
During the warranty period, and upon proof of purchase, the product will be repaired or replaced (with the same or similar model at manufactures option), without charge for either parts of labour. In case of a defect please contact the dealer where you originally purchased this product.
The warranty will not apply to this product if
It has been misused, abused or altered
Leakage of the battery, bending or dropping the unit are presumed to be defects resulting from misuse or abuse.
