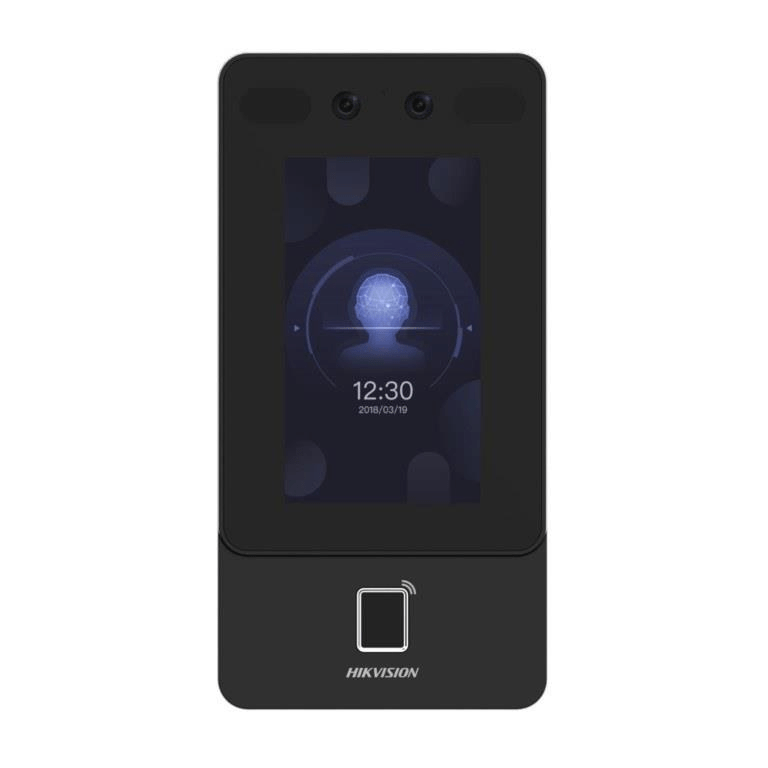

Hikvision Face Recognition Access Control Terminal With Fingerprint Reader DS-K1T342MFWX-E1

Brand	Hikvision
Manufacturer	Hikvision
Model Number	DS-K1T342MFWX-E1

Hikvision Face Recognition Access Control Terminal with Fingerprint Reader DS-K1T342MFWX-E1
Face recognition terminal adopts deep learning algorithm, which helps to recognize the face faster with higher accuracy. It also supports multiple authentication modes: face/card/fingerprint authentication, etc. It can be applied in multiple scenarios, such as buildings, enterprises, financial industries, and other important areas.
Features
Max.1500 faces capacity, Max.3000 fingerprints capacity, and Max.3000 cards
Face Recognition Terminal, 4.3-inch LCD touch screen, 2 Mega pixel wide-angle lens, built-in M1card reading module
Two-way audio with client software, indoor station, and main station; Supports TCP/IP, Wi-Fi
Supports ISAPI, ISUP5.0
Configuration via the web client
Face Recognition Distance: 0.3 m to 1.5 m; Duration * 0.2 s/User; Accuracy rate 99%
Supports face with mask recognition
Powers supply by standard PoE and at the same time powers supply for door lock (12 VDC/1 A)
Supports platform-applied personal PIN and device-set personal PIN
Technical Specification
System


Operation System: Linux

Display


Dimensions: 4.3-inch



Resolution: 272 x480



Type: LCD



Operation Method: Capacitive touch screen

Video


Pixel: 2MP



Lens: 2x



Video Standard: PAL (Default) and NTSC

Network


Wired Network: 10/100Mbps self-adaptive



Wi-Fi: Support

Interface


PoE: IEEE802.3at, standard PoE



Network Interface: 1



RS-485: 1



Wiegand: 1



Lock Output: 1



Exit Button: 1



Door Contact Input: 1



TAMPER: 1



USB: 1

Capacity


Card Capacity:3,000



Face Capacity:1,500



Fingerprint Capacity:3,000



Event Capacity:150,000

Authentication


Card Type: M1 card



Card Reading Frequency: 13.56 MHz



Face Recognition Duration:* 0.2 s



Face Recognition Accuracy Rate:*99%



Face Recognition Distance: 0.3 to 1.5 m



Fingerprint Recognition Duration:*1 s

General


Power input: Power interface (power adapter included, 12 VDC/1 A) or PoE (37 to 57 VDC/0.6 A)



Power output: Power supply for door lock, 12 VDC/1 A (only when the device is powered by PoE supporting powering supply for door lock)



Dimensions:91.3 mm x181.3 mm x24.5 mm



Installation:Wall Mounting



Protective Level:IP65

Function


Face Anti-Spoofing: Support



Audio Prompt: Support



Time Synchronization: Support
