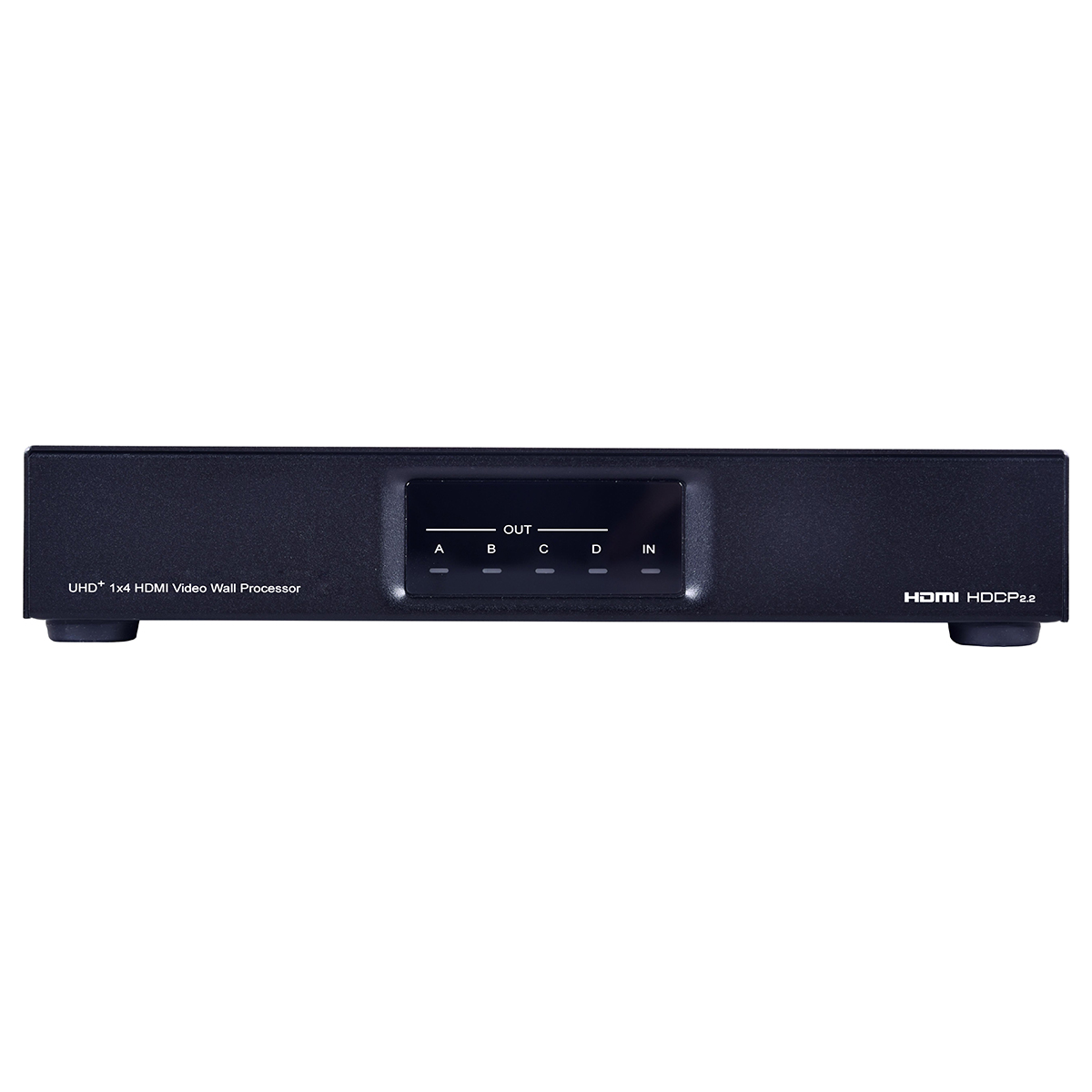

Uhd+ 1X4 HDMI Video Wall Processor CNV-CDPS-4KQ-AD

Brand	Unbranded
Manufacturer	Cypress
Model Number	CNV-CDPS-4KQ-AD

Cypress UHD+ 1x4 HDMI Video Wall Processor CNV-CDPS-4KQ-AD
This unit can take any standard 4K HDMI source and generate a high quality 2*2 video wall with bezel compensation and full audio bypass. Input supports 4K HDMI video, up to and including 4K @60Hz (4:4:4, 8-bit) as well as 10/12-bit. Each of the 4 outputs supports resolutions fixed at 1080p @60Hz to generate a true 4K video wall with RS-232 port support for event-triggered commands. Built-in advanced EDID management options including internal, external and user configurations as well as advanced HDCP processing allows this video wall unit to handle almost any source situation. A dedicated PC application allows the user to fully customize the video wall and associated features. Multiple control interfaces are available including OSD, RS-232, Telnet and PC tool.
Features
1xHDMI input supports 4K sources up to 18Gbps (600MHz)
4xHDMI output supports resolutions fixed at 1080p @60Hz
Input supports 4K resolutions up to 4096 x2160 @60Hz (4:4:4, 8-bit)
Input supports 4K @24Hz (4:4:4) and 60Hz (YUV 4:2:0) with up to 12-bit colour (HDR is automatically converted to SDR for 1080p output)
Supports pass-through of audio formats including LPCM 2.0/5.1/7.1, Bitstream and HD Bitstream
Basic signal event automation (via RS-232) to connected HDMI display
Dedicated PC application for easy control of the unit
Technical Specification
Interfaces
1xHDMIInput
4xHDMIOutput
1xI/O Control (RJ45)
1xRS232
1xUSBService Port
Video
HDMI Compliance HDMI 2.0 (DVI 1.0)
HDCP Compliance: 2.x
Input Signal Type: 4096 x2160 @60Hz 8-bit YUV 4:4:4
Output Signal Type: 1920 x1080 @60Hz 8-bit
Resolutions
Maximum Input: HDMI4096 x2160 @60Hz
Maximum Output: HDM: 1920 x1080 @60Hz
Audio
Input Signal Types: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
Output Signal Types: HDMI 2CH / 7.1CH LPCM, Bitstream, HD Bitstream
Enclosure
Chassis Material: Steel
Chassis Colour: Black
Weight: 652g
Power
Power Supply: 24V 0.75A
Power Consumption: 9W
Field Firmware Update
USB Flash Drive, PC application
