Description
This is a 16mm drill chuck with a Jacobs Taper #3 taper. The taper adapter may be required to fit the chuck to your machine application, and the chuck key is included. The installation instructions include cleaning both the taper and the chuck of all grease and grit, and tapping the chuck into place on the spindle/taper adaptor. To remove the chuck from the arbor, insert wedges between the back of the chuck and the shoulder of the arbor, and tap these wedges with a hammer or apply force in a bench vice.

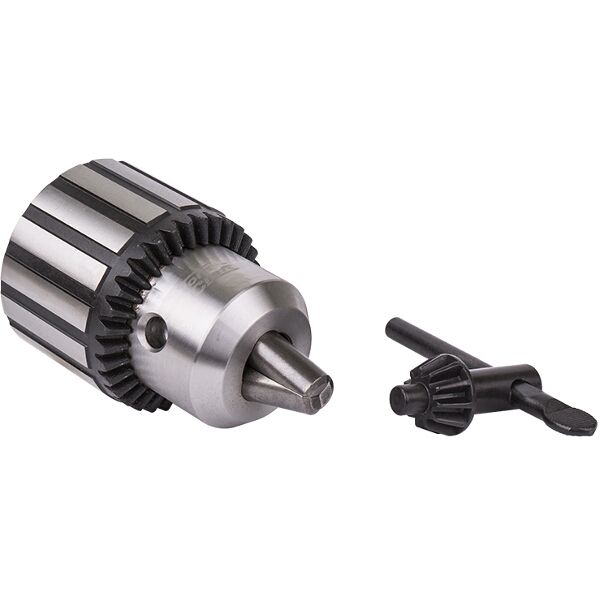

16mm Drill Chuck with key 16mm Keyed chuck with JT3 taper. A correct taper adapter may be required to fit the chuck to your machine application. This version is Jacobs Taper #3.
- JT3 taper
- Opening capacity: 16mm
- All metal construction
- Chuck key included
Installation Info
Clean both tapers of all grease and grit. With the chuck jaws completely retracted into the chuck and using a thin piece of wood to protect the chuck nose, tap the chuck into place on the spindle/taper adaptor.
To remove chuck from arbor Insert wedges between the back of the chuck and the shoulder of the arbor as shown in the picture on the right. By tapping these wedges with a hammer or applying force in a bench vice, the wedges will force the chuck off the arbor shaft.
