Description

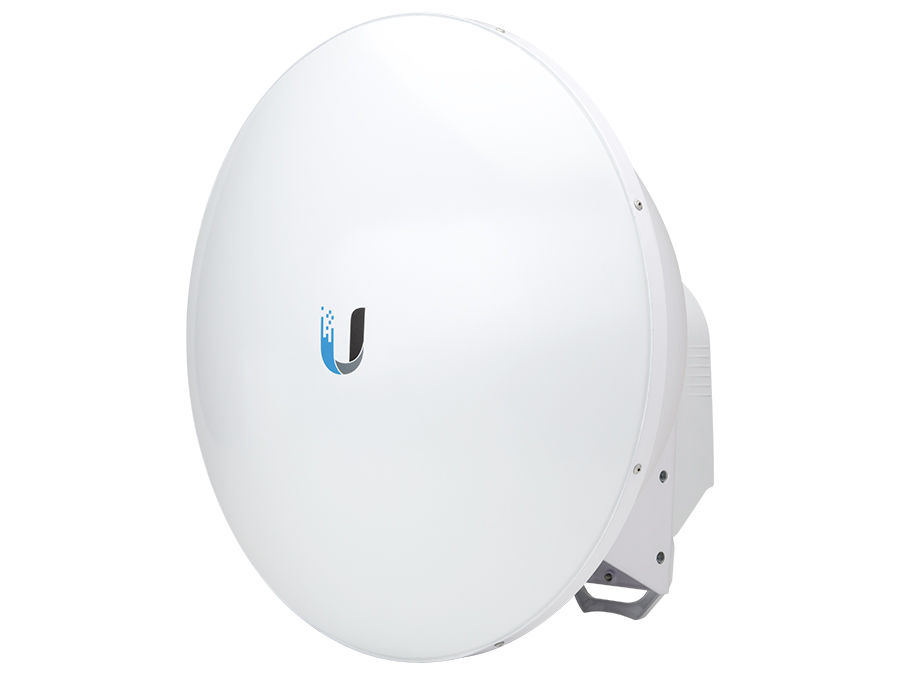

The Ubiquiti 5GHZ Airfiber Dish 23DBI Slant 45 Ptp is a high-performance 5GHz airFiber dish designed for data transmission. It features industry-leading 10.6 bps/Hz spectral efficiency, linerate data packet processing for up to 500+Mbps of real data throughput, and innovative xtreme Range Technology (xRT) for up to 200+km inrange. Additionally, the channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference. The Ubiquiti 5GHZ Airfiber Dish 23DBI Slant 45 Ptp is also ETSI specification EN 302 326 DN2 compliant and mounts with a universal pole mount, airFiber X Radio Bracket, and weatherproof RF connectors included.
PLEASE NOTE - By default, for powered items, Ubiquiti includes adapter plugs that are not suited for South Africa. In these cases, the wrong adapter plug will carefully be removed from the box and a South African compatible plug will be sent separately.Features:
TheAF5X by Ubiquiti features industry-leading 10.6 bps/Hz spectral efficiency, linerate data packet processing for up to 500+Mbps of real data throughput, and innovative xtreme Range Technology (xRT) for up to 200+km inrange, according to UBNT.
Channel width flexibility (10/20/30/40/50 MHz) allows independent TX and RX channel frequency configurations anywhere within the radio band to avoid local interference, and the channel centers are selectable in 1 MHz increments. You also have the ability to program different uplink and downlink duty cycles to support asymmetric traffic requirements
Specifications:
- Frequency Range: 5.1 - 5.9 GHz- Gain 23 dBi- + 45 Beam-width: 10 (3 dB)- - 45 Beam-width: 10 (3 dB)- F/B Ratio: 30 dB- Max. VSWR: 1.5:1- Wind Loading:190 N @ 200 km/h- Wind Survivability 200 km/h (125 mph) - Polarisation: Dual-Linear- Cross-pol Isolation: 35 dB Min.- ETSI Specification: EN 302 326 DN2- Mounting: Universal Pole Mount, airFiber X Radio Bracket, and Weatherproof RF Connectors Included
- Dimensions: 378 x 378 x 290 mm- Weight: 3.4 kg (includes pole mount)
